METALIM TOR-AL
(move over the links to highlight the images)
The METALIM TOR-AL metal detector is composed by a Comp-Al electronic board that controls the whole system and by a TOR-AL transducer with a circular passage.

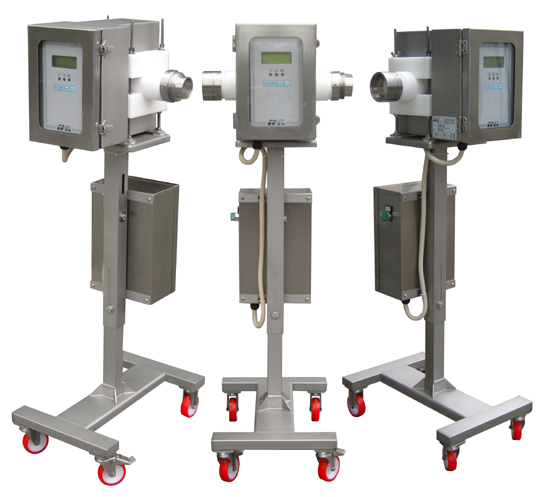

![Metal detector on a steel support structure](../img/metal_detector_salumi.jpg)
The metaldetector is normally installed on a supporting structure:
the product to be checked passes through the passage inside a pipe or
for free falling.
Furthermore, CO-EL designs and manufactures stuctures following the client's specifical requests.
CONFIGURATIONS
The METALIM TOR-AL metal detector is generally supplied with a supporting
structure, and can be equipped with many accessories.
- The pipe dimensions and section are both adjustable according to the client's specification, to maximize the metal detector's performance in every kind of installation.
- The metal detector is supplied in both monoblock solution (Comp-Al
and TOR-AL on the same structure ) or in a separated groups solution ( A remote Comp-Al board
controlling the TOR-AL transuducer): the METALIM metal detector is adaptable
to every situation.
STRUCTURES
CO-EL projects customized solutions based on client's specific
requests. All versions has the same base characteristics:
- A solid and compact structure, compliant in every part to the hygiene regulations for the food industry. Protection class IP55 o higher on request.
- Food plastic pipes, with stainless steel joints for junctions with the exixting pipes
- Position (height and inclination) of the pipe variable according to the needs; Horizontal mounting for free-falling products.
- When the metal detector intercepts a metal contaminant, the control board can activate many rejection systems and alert devices
- It's possible to connect the metal detector to many other machinery like checkweighters or packing machines.
ACCESSORIES
On request the metal detector can be equipped with:
![Modular alarm light](../img/avvisatore_luminoso.jpg) |
![Audible unit, high intensity](../img/avvisatore_modulare.jpg) |
![Audible unit, low intensity](../img/avvisatore_pannello.jpg) |
Modular allarm light |
Audible unit, high intensity |
Audible unit, low intensity |
![Flap valve](../img/espulsore_flusso.jpg) |
![Waterproof control board](../img/../img/ripari_toral.jpg) |
![Remote monitoring software](../img/screenshot_small.jpg) |
Flap valve |
Waterproof control board |
Remote monitoring software |
Meat and sausage industry
CO-EL has developed through the years a series of accessories specifically devoted to the meat industry:
![Vacuum fillers junction](../img/raccordo.jpg) |
![Pneumatic rejection valve](../img/espulsore_salumi.jpg) |
Vacuum fillers junction |
Pneumatic rejection valve |
|
![Comp-Al control board](../img/toral1.jpg)
![Complete metal detector](../img/toral2.jpg)
![Vacuum filler junction](../img/toral3.jpg)
![Sloped structure metal detector](../img/toral4.jpg)
